Auger Bit

Bellhanger Bit

Designed for the professional electrician or low-voltage cable installer.
The wire hole at the tip of the bit makes it easy to pull wire through walls, ceilings, and floors.
Ideal for the installation of small wire for telephones, cable, TV, computers, and security systems.

PREV | NEXT

contact

Category
Hot Products

Newsletter

urus

Don't hesitate to send a message

+86-573-84611229 SEND MESSAGE

Product Features

The body
Equipped with a hole in the tip to pull the wire through after drilling.
The length
Extra length for deep drilling.

Product Details


Regular point	Hole in flute	Made in one piece	Double flute


Round shank	Hex shank	3 flats

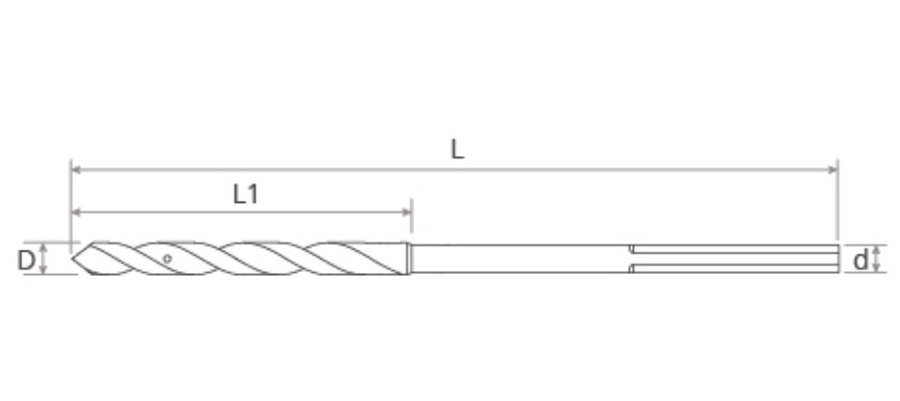

Dimension Marking

Product Parameters

OAL: 12'

Item No.	D/mm	D/inch	L	L1	d
U1215105	4.76	3/16	305	75	4.3
U1215106	6.35	1/4	305	75	6.30
U1215107	7.14	9/32	305	75	6.30
U1215108	7.94	5/16	305	90	7.80
U1215109	9.53	3/8	305	110	9.30

U1215111	11.10	7/16	305	110	9.30
U1215112	12.70	1/2	305	120	9.30
U1215115	15.88	5/8	305	130	12.70

U1215119	19.05	3/4	305	150	12.70
U1215125	25.00	1	305	150	12.70

OAL: 18'

Item No.	D/mm	D/inch	L	L1	d
U1215205	4.76	3/16	460	75	4.3
U1215206	6.35	1/4	460	75	6.30
U1215207	7.14	9/32	460	75	6.30
U1215208	7.94	5/16	460	90	7.80
U1215209	9.53	3/8	460	110	9.30
U1215211	11.10	7/16	460	110	9.30

U1215212	12.70	1/2	460	120	9.30
U1215215	15.88	5/8	460	130	12.70
U1215219	19.05	3/4	460	150	12.70

U1215225	25.00	1	460	150	12.70
