Double-flute Auger Bit
HOME / CATEGORIES / Drill Bits / Wood Bits / Auger Bit / Double-flute Auger Bit
  • Double-flute Auger Bit
  • Double-flute Auger Bit
  • Double-flute Auger Bit
  • Double-flute Auger Bit
Auger Bit

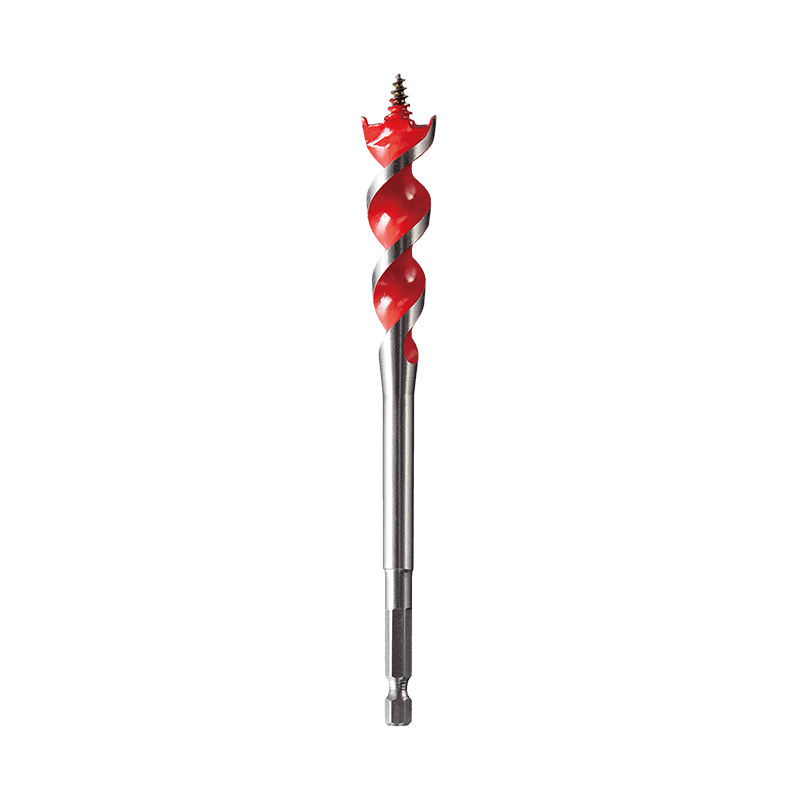

Double-flute Auger Bit

Either made from high-quality carbon steel or equally better materials.
Wide lands keep the bit straight as it bores through the hole.
Quick-change shank prevents the bit from slipping in the chuck.

1/4" quick-change shank allows quick adaptation.
Screw tip and cutting edge design provide fast feeding.
The taper design of the drilling body allows for quick exit after drilling.

PREV   |   NEXT


Newsletter
urus

Don't hesitate to send a message

+86-573-84611229 SEND MESSAGE
Product Features
  • The point
    Self-feeding screw point provides fast boring in hard and soft woods, for precise and easy drilling.
  • Center design
    Non-Stick Coated Flutes for fast and smooth chip ejection.
  • Cutting edge
    Double Wing Spurs for clean hole cutting, without breakout.
  • The shank
    Quick-change shank prevents the bit from slipping in the chuck.
  • Finish
    Power coating
    Blackening
    Sandblasting
Product Details
No cutting wing style Double cutting wing style

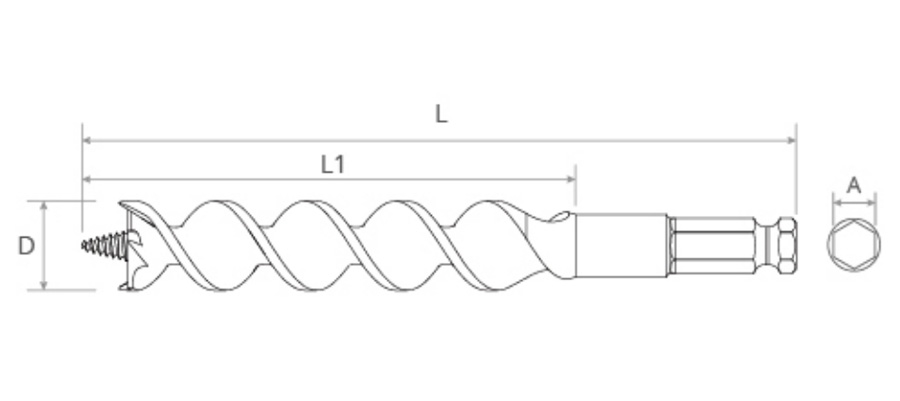

Dimension Marking

Product Parameters

OAL:165mm

Item No. D/mm D/inch L L1 A
U1202110 10  165  115  7.94
U1202111 11  7/16 165  115  7.94
U1202112 12  165  115  7.94
U1202113 13  1/2 165  115  7.94
U1202115 15  165  115  11.11
U1202116 16  5/8 165  115  11.11
U1202118 18  11/16 165  115  11.11
U1202119 19  3/4 165  115  11.11
U1202120 20  165  115  11.11
U1202121 21  13/16 165  115  11.11
U1202122 22  7/8 165  115  11.11
U1202124 24  15/16 165  115  11.11
U1202125 25  1  165  115  11.11
U1202128 28  11/8 165  115  11.11
U1202130 30  165  115  11.11
U1202132 32  11/4 165  115  11.11
U1202135 35  13/8 165  115  11.11
U1202138 38  11/2 165  115  11.11

OAL:230mm

Item No. D/mm D/inch L L1 A
U1202210 10  230  155  7.94
U1202211 11  7/16 230  155  7.94
U1202212 12  230  155  7.94
U1202213 13  1/2 230  155  7.94
U1202215 15  230  155  11.11
U1202216 16  5/8 230  155  11.11
U1202218 18  11/16 230  155  11.11
U1202219 19  3/4 230  155  11.11
U1202220 20  230  155  11.11
U1202221 21  13/16 230  155  11.11
U1202222 22  7/8 230  155  11.11
U1202224 24  15/16 230  155  11.11
U1202225 25  1  230  155  11.11
U1202228 28  11/8 230  155  11.11
U1202230 30  230  155  11.11
U1202232 32  11/4 230  155  11.11
U1202235 35  13/8 230  155  11.11
U1202238 38  11/2 230  155  11.11

OAL:460mm

Item No. D/mm D/inch L L1 A
U1202310 10  460  385  7.94
U1202311 11  7/16 460  385  7.94
U1202312 12  460  385  7.94
U1202313 13  1/2 460  385  7.94
U1202315 15  460  385  11.11
U1202316 16  5/8 460  385  11.11
U1202318 18  11/16 460  385  11.11
U1202319 19  3/4 460  385  11.11
U1202320 20  460  385  11.11
U1202321 21  13/16 460  385  11.11
U1202322 22  7/8 460  385  11.11
U1202324 24  15/16 460  385  11.11
U1202325 25  1  460  385  11.11
U1202328 28  11/8 460  385  11.11
U1202330 30  460  385  11.11
U1202332 32  11/4 460  385  11.11
U1202335 35  13/8 460  385  11.11
U1202338 38  11/2 460  385  11.11

Unit:mm

Item No. D L L1 d1 A
1  1/2 165  81  8
2  5/8 165  81  8  1/4
Quick
change
shank
3  3/4 165  81  8
4  7/8 165  81  8
5  1  165  81  8
6  11/4 165  81  8
