Auger Bit (Flat Style)
HOME / CATEGORIES / Drill Bits / Wood Bits / Auger Bit / Auger Bit (Flat Style)
  • Auger Bit (Flat Style)
  • Auger Bit (Flat Style)
Auger Bit

Auger Bit (Flat Style)

Flat drill body provides fast chip ejection and heat dissipation.
Fits all standard 1/4" quick-change chucks.

PREV   |   NEXT


Newsletter
urus

Don't hesitate to send a message

+86-573-84611229 SEND MESSAGE
Product Features
  • The point
    Self-feeding screw point provides fast boring in hard and soft woods, for precise and easy drilling.
  • The body
    The whole stopper provides fast boring, efficiently controlling hole depth.
  • The shank
    Grooved hex shank prevents slipping in drill chuck or bit extension.
  • Shank style
    3 flats
    Hex shank
    Round shank
Product Details
Point Stopper Shank
Dimension Marking

Product Parameters

OAL:70mm

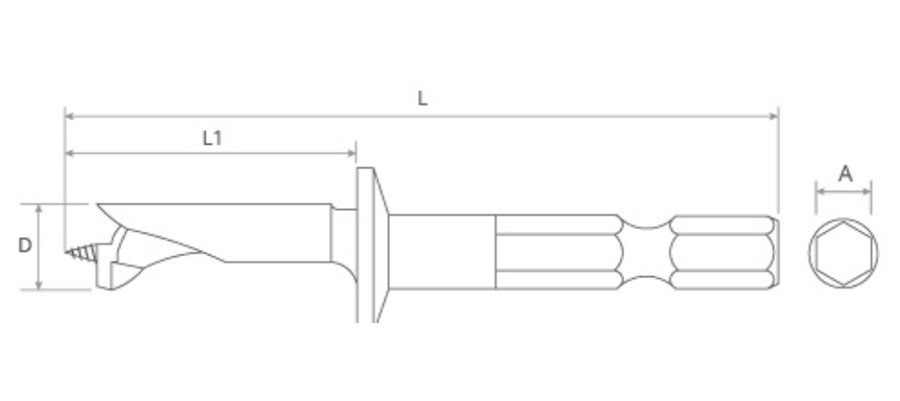

Item No. D L L1 A
U1211108 8.00  70  27  6.35
U1211185 8.50  70  27  6.35
U1211109 9.00  70  27  6.35
U1211192 9.20  70  27  6.35
U1211195 9.50  70  27  6.35
U1211110 10.00  70  27  6.35
U1211111 10.50  70  27  6.35
U1211112 12.00  70  27  6.35
U1211113 12.70  70  27  6.35
U1211114 13.50  70  27  6.35
U1211115 15.00  70  27  6.35

OAL: 75mm

Item No. D L L1 A
U1211208 8.00  75  32  6.35
U1211285 8.50  75  32  6.35
U1211209 9.00  75  32  6.35
U1211292 9.20  75  32  6.35
U1211295 9.50  75  32  6.35
U1211210 10.00  75  32  6.35
U1211211 10.50  75  32  6.35
U1211212 12.00  75  32  6.35
U1211213 12.70  75  32  6.35
U1211214 13.50  75  32  6.35
U1211215 15.00  75  32  6.35

OAL:87mm

Item No. D L L1 A
U1211308 8.00  87  43  6.35
U1211385 8.50  87  43  6.35
U1211309 9.00  87  43  6.35
U1211392 9.20  87  43  6.35
U1211395 9.50  87  43  6.35
U1211310 10.00  87  43  6.35
U1211311 10.50  87  43  6.35
U1211312 12.00  87  43  6.35
U1211313 12.70  87  43  6.35
U1211314 13.50  87  43  6.35
U1211315 15.00  87  43  6.35
