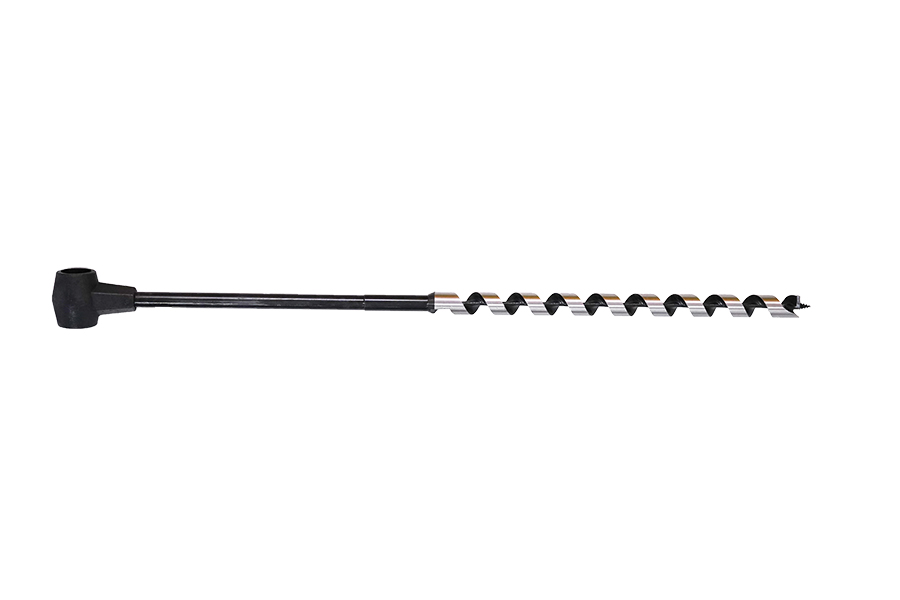

The point
Self feeding screw point provides fast boring in hard and soft woods for precise and easy drilling.
Cutting edge
Single spur cutting edge make the rapid chip clearance, producing a faster, cleaner hole.
The shank
An auger handle bar is placed through the eye and the auger is turned by hand to bore.
Description:
※Either made from high quality carbon steel or equality better materials.
※Solid center design provides extra rigidity and power while boring.
※Boring a wide range of holes in hard and soft woods in a variety of locations, especially where electric power is not available.
 |
 |
 |
 |
| ※Point | ※Solid flute | ※Casting shank | ※Welding shank |
Dimension marking:
OAL:400mm
|
Item No. |
D |
L |
L1 |
d |
d1 |
|
U1207110 |
10 |
400 |
200 |
15 |
8 |
|
U1207111 |
11 |
400 |
200 |
15 |
8 |
|
U1207112 |
12 |
400 |
200 |
15 |
8 |
|
U1207113 |
13 |
400 |
200 |
15 |
9 |
|
U1207114 |
14 |
400 |
200 |
15 |
9 |
|
U1207115 |
15 |
400 |
200 |
15 |
10 |
|
U1207116 |
16 |
400 |
200 |
15 |
10 |
|
U1207118 |
18 |
400 |
200 |
15 |
11 |
|
U1207120 |
20 |
400 |
200 |
15 |
12 |
|
U1207122 |
22 |
400 |
200 |
15 |
13 |
|
U1207124 |
24 |
400 |
200 |
15 |
13 |
|
U1207126 |
26 |
400 |
200 |
15 |
13 |
|
U1207128 |
28 |
400 |
200 |
22.5 |
14 |
|
U1207130 |
30 |
400 |
200 |
225 |
14 |
|
U1207132 |
32 |
400 |
200 |
22.5 |
14 |
|
U1207134 |
34 |
400 |
200 |
22.5 |
14 |
|
U1207136 |
36 |
400 |
200 |
22.5 |
15 |
|
U1207138 |
38 |
400 |
200 |
22.5 |
15 |
|
U1207140 |
40 |
400 |
200 |
225 |
15 |
|
U1207142 |
42 |
400 |
200 |
22.5 |
16 |
|
U1207144 |
44 |
400 |
200 |
22.5 |
16 |
|
U1207146 |
46 |
400 |
200 |
22.5 |
16 |
|
U1207148 |
48 |
400 |
200 |
22 5 |
16 |
|
U1207150 |
50 |
400 |
200 |
22.5 |
16 |
|
U1207152 |
52 |
400 |
200 |
22.5 |
16 |
OAL:450mm
|
Item No. |
D |
L |
L1 |
d |
D1 |
|
U1207210 |
10 |
450 |
200 |
15 |
8 |
|
U1207211 |
11 |
450 |
200 |
15 |
8 |
|
U1207212 |
12 |
450 |
200 |
15 |
8 |
|
U1207213 |
13 |
450 |
200 |
15 |
9 |
|
U1207214 |
14 |
450 |
200 |
15 |
9 |
|
U1207215 |
15 |
450 |
200 |
15 |
10 |
|
U1207216 |
16 |
450 |
200 |
15 |
10 |
|
U1207218 |
18 |
450 |
200 |
15 |
11 |
|
U1207220 |
20 |
450 |
200 |
15 |
12 |
|
U1207222 |
22 |
450 |
200 |
15 |
13 |
|
U1207224 |
24 |
450 |
200 |
15 |
13 |
|
U1207226 |
26 |
450 |
200 |
15 |
13 |
|
U1207228 |
28 |
450 |
200 |
22.5 |
14 |
|
U1207230 |
30 |
450 |
200 |
22.5 |
14 |
|
U1207232 |
32 |
450 |
200 |
22.5 |
14 |
|
U1207234 |
34 |
450 |
200 |
22.5 |
14 |
|
U1207236 |
36 |
450 |
200 |
22.5 |
15 |
|
U1207238 |
38 |
450 |
200 |
22.5 |
15 |
|
U1207240 |
40 |
450 |
200 |
22.5 |
15 |
|
U1207242 |
42 |
450 |
200 |
22.5 |
16 |
|
U1207244 |
44 |
450 |
200 |
22.5 |
16 |
|
U1207246 |
46 |
450 |
200 |
22.5 |
16 |
|
U1207248 |
48 |
450 |
200 |
22.5 |
16 |
|
U1207250 |
50 |
450 |
200 |
22.5 |
16 |
|
U1207252 |
52 |
450 |
200 |
22.5 |
16 |
OAL:560mm
|
Item No. |
D |
L |
L1 |
d |
d1 |
|
U1207310 |
10 |
560 |
200 |
15 |
8 |
|
U1207311 |
11 |
560 |
200 |
15 |
8 |
|
U1207312 |
12 |
560 |
200 |
15 |
8 |
|
U1207313 |
13 |
560 |
200 |
15 |
9 |
|
U1207314 |
14 |
560 |
200 |
15 |
9 |
|
U1207315 |
15 |
560 |
200 |
15 |
10 |
|
U1207316 |
16 |
560 |
200 |
15 |
10 |
|
U1207318 |
18 |
560 |
200 |
15 |
11 |
|
U1207320 |
20 |
560 |
200 |
15 |
12 |
|
U1207322 |
22 |
560 |
200 |
15 |
13 |
|
U1207324 |
24 |
560 |
200 |
15 |
13 |
|
U1207326 |
26 |
560 |
200 |
15 |
13 |
|
U1207328 |
28 |
560 |
200 |
22.5 |
14 |
|
U1207330 |
30 |
560 |
200 |
22.5 |
14 |
|
U1207332 |
32 |
560 |
200 |
22.5 |
14 |
|
U1207334 |
34 |
560 |
200 |
22.5 |
14 |
|
U1207336 |
36 |
560 |
200 |
22.5 |
15 |
|
U1207338 |
38 |
560 |
200 |
22.5 |
15 |
|
U1207340 |
40 |
560 |
200 |
22.5 |
15 |
|
U1207342 |
42 |
560 |
200 |
22.5 |
16 |
|
U1207344 |
44 |
560 |
200 |
22.5 |
16 |
|
U1207346 |
46 |
560 |
200 |
22.5 |
16 |
|
U1207348 |
48 |
560 |
200 |
22.5 |
16 |
|
U1207350 |
50 |
560 |
200 |
22.5 |
16 |
|
U1207352 |
52 |
560 |
200 |
22.5 |
16 |
OAL:600mm
|
Item No. |
D |
L |
L1 |
d |
d1 |
|
U1207410 |
10 |
600 |
200 |
15 |
8 |
|
U1207411 |
11 |
600 |
200 |
15 |
8 |
|
U1207412 |
12 |
600 |
200 |
15 |
8 |
|
U1207413 |
13 |
600 |
200 |
15 |
9 |
|
U1207414 |
14 |
600 |
200 |
15 |
9 |
|
U1207415 |
15 |
600 |
200 |
15 |
10 |
|
U1207416 |
16 |
600 |
200 |
15 |
10 |
|
U1207418 |
18 |
600 |
200 |
15 |
11 |
|
U1207420 |
20 |
600 |
200 |
15 |
12 |
|
U1207422 |
22 |
600 |
200 |
15 |
13 |
|
U1207424 |
24 |
600 |
200 |
15 |
13 |
|
U1207426 |
26 |
600 |
200 |
15 |
13 |
|
U1207428 |
28 |
600 |
200 |
22.5 |
14 |
|
U1207430 |
30 |
600 |
200 |
22.5 |
14 |
|
U1207432 |
32 |
600 |
200 |
22.5 |
14 |
|
U1207434 |
34 |
600 |
200 |
22.5 |
14 |
|
U1207436 |
36 |
600 |
200 |
22.5 |
15 |
|
U1207438 |
38 |
600 |
200 |
22.5 |
15 |
|
U1207440 |
40 |
600 |
200 |
22.5 |
15 |
|
U1207442 |
42 |
600 |
200 |
22.5 |
16 |
|
U1207444 |
44 |
600 |
200 |
22.5 |
16 |
|
U1207446 |
46 |
600 |
200 |
22.5 |
16 |
|
U1207448 |
48 |
600 |
200 |
22.5 |
16 |
|
U1207450 |
50 |
600 |
200 |
22.5 |
16 |
|
U1207452 |
52 |
600 |
200 |
22.5 |
16 |
