Square Hole Drill Bits A Style
HOME / CATEGORIES / Drill Bits / Wood Bits / Square Hole Drill Bits / Square Hole Drill Bits A Style
  • Square Hole Drill Bits A Style
  • Square Hole Drill Bits A Style
Square Hole Drill Bits

Square Hole Drill Bits A Style

Either made from high-quality carbon steel or equally better materials.
The walls of the chisel point are all equal in thickness for superior long-lasting performance.
All metric chisels and imperial sizes from 1/4" to 1-3/16" have 3/4" or 5/8" shanks.

PREV   |   No next article


Newsletter
urus

Don't hesitate to send a message

+86-573-84611229 SEND MESSAGE
Product Features
  • Cutting tips
    Designed for efficient chip ejection, the drill bits have well-ground cutting tips and spurs for compatibility with a variety of mortisers.
  • The point
    The chisel point has four teeth, all equal in height.
  • The body
    The chisel bodies, accurately ground and hardened, have polished outside faces and smoothly machined inner bevels for easy penetration.

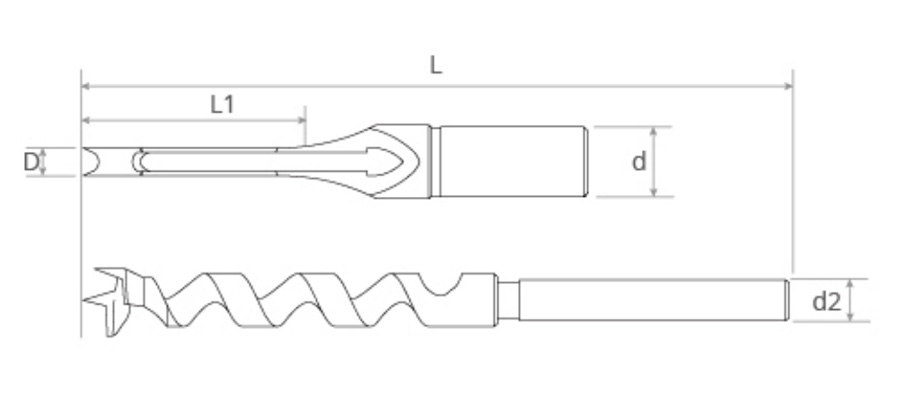

Product Details
Shank Chisel body&bit Four teeth Bit point
Dimension Marking

Product Parameters

A style:
Silver Grinding
Unit: mm

Item No. D L L1 3/4d 5/8d 3/4 d2 5/8 d2
  U1101060 6.00  210  43  19  15.87  4.55  4.55
  U1101063 6.35  210  43  19  15.87  4.55  4.55
  U1101079 7.94  210  47  19  15.87  5.85  5.85
  U1101095 9.50  210  61  19  15.87  6.85  6.85
  U1101100 10.00  210  72  19  15.87  6.85  6.85
  U1101110 11.00  210  72  19  15.87  8.05  8.05
  U1101120 12.00  210  72  19  15.87  9.30  9.30
  U1101127 12.70  210  72  19  15.87  9.50  9.50
  U1101140 14.00  210  72  19  15.87  10.10  10.10
  U1101150 15.00  218  92  19  15.87  11.80  10.00
  U1101159 15.90  218  92  19  15.87  12.00  10.00
  U1101180 18.00  225  92  19  15.87  12.00  10.00
  U1101190 19.00  225  92  19  15.87  12.00  10.00
  U1101200 20.00  225  92  19  15.87  12.00  10.00
  U1101220 22.00  225  92  19  15.87  12.00  10.00
  U1101254 25.40  225  92  19  15.87  12.00  10.00
  U1101300 30.00  225  92  19  15.87  12.00  10.00
