Double Flute Brad Point Wood Bit
HOME / CATEGORIES / Drill Bits / Wood Bits / Brad Point Wood Bit / Double Flute Brad Point Wood Bit
  • Double Flute Brad Point Wood Bit
  • Double Flute Brad Point Wood Bit
  • Double Flute Brad Point Wood Bit
  • Double Flute Brad Point Wood Bit
Brad Point Wood Bit

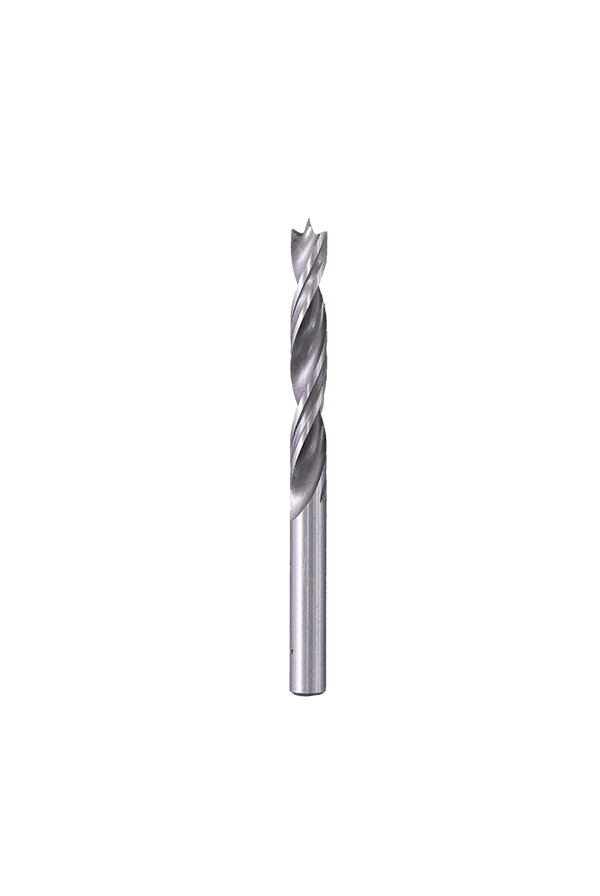

Double Flute Brad Point Wood Bit

Either made from high-quality carbon steel or equally better materials.
Right-hand cutting.
Strict European standards for consistent quality assurance.

PREV   |   NEXT


Newsletter
urus

Don't hesitate to send a message

+86-573-84611229 SEND MESSAGE
Product Features
  • The point
    "Five-star" center point for easy positioning and effortless drilling, equally important, these bits are extremely accurate in diameter.
  • The flutes
    Double flutes give superior chip clearance, and the sharply defined lips have a slight negative angle on the lip tips to score the hole for clean entry and smooth sidewalls.
  • The shank
    Round shank fits all standard chucks.
  • The shank
    Grooved hex shank prevents slipping in drill chuck or bit extension.
Product Details
Brad point Double flute Shank

The point Double flute Shank

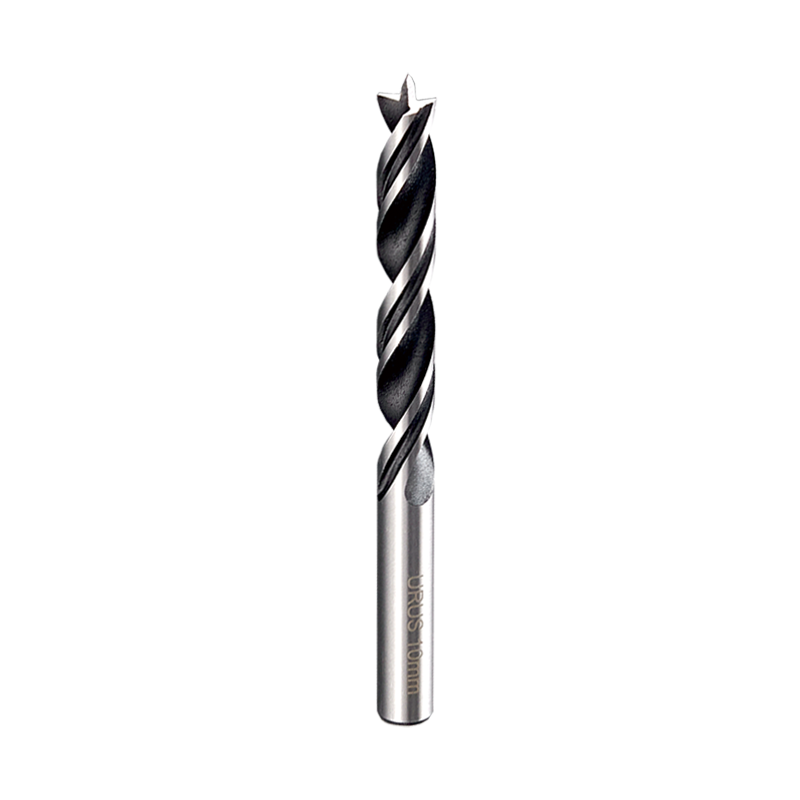

Dimension Marking

Product Parameters

Unit: mm

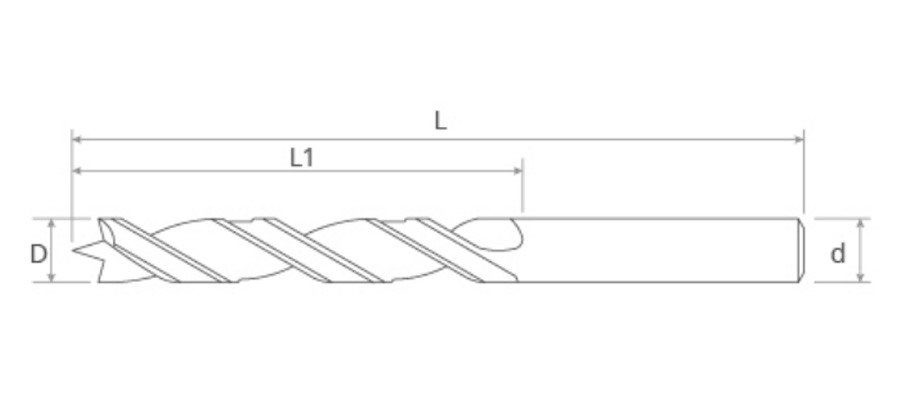

Item No. D L L1 d
U1303003 3  61  33  3
U1303004 4  75  43  4
U1303005 5  86  52  5
U1303006 6  93  57  6
U1303007 7  109  69  7
U1303008 8  117  75  8
U1303009 9  120  80  9
U1303010 10  133  87  10
U1303011 11  142  89  8
U1303012 12  151  96  8
U1303013 13  151  96  8
U1303014 14  151  96  10
U1303015 15  160  100  10
U1303016 16  160  100  10
U1303017 17  170  108  10
U1303018 18  180  130  10
U1303019 19  196  135  10
U1303020 20  200  135  10
U1303022 22  210  140  13
U1303024 24  215  140  13
U1303025 25  215  140  13
U1303026 26  215  140  13
U1303028 28  220  140  13
U1303030 30  220  140  13

D7487

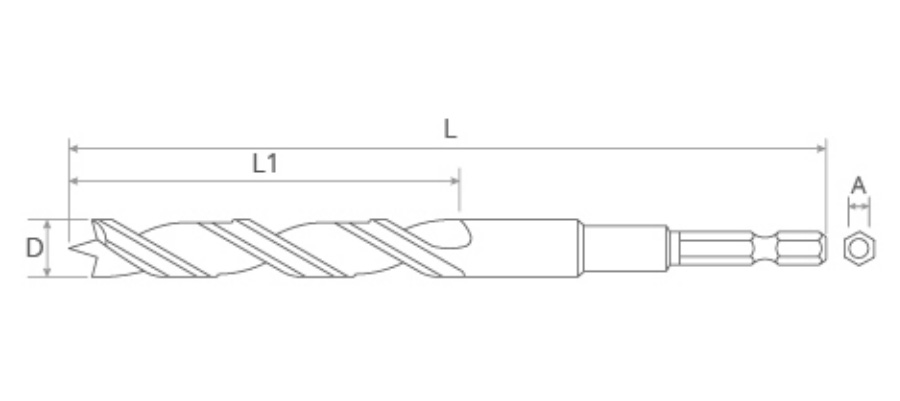

Item No. D L L1 A
U1304003 3  70  33  6.35
U1304004 4  85  43  6.35
U1304005 5  84  52  6.35
U1304006 6  101  57  6.35
U1304007 7  109  69  6.35
U1304008 8  116  75  6.35
U1304009 9  120  80  6.35
U1304010 10  129  87  6.35
U1304011 11  142  89  6.35
U1304012 12  151  96  6.35
U1304013 13  151  96  6.35
U1304014 14  151  96  6.35
U1304015 15  160  100  6.35
U1304016 16  160  100  6.35
U1304017 17  170  108  6.35
U1304018 18  180  130  6.35
