Hammer Drill Bit
HOME / CATEGORIES / Drill Bits / Masonry Drill / Hammer Drill Bit
  • Hammer Drill Bit
  • Hammer Drill Bit
Masonry Drill

Hammer Drill Bit

Hex shanks allow use in impactors and hammer drill/drivers for added versatility.
Robust, high-quality carbide head provides fast drilling in materials in bricks, concrete, and stone.
Sharp ground cutting edges-designed for advanced performance.
Steep flutes deliver fast material removal.

No previous article   |   NEXT


Newsletter
urus

Don't hesitate to send a message

+86-573-84611229 SEND MESSAGE
Product Features
  • Finish
    Sand blasted
    Power coating
    Blacken
    Zinc-coating
Product Details

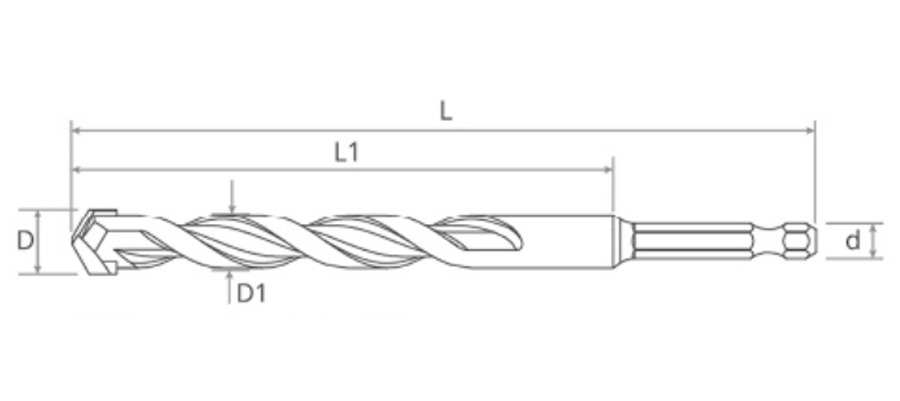

Point Body Shank
Dimension Marking

Product Parameters

Unit: mm

Item No. mm inch D D1 L d
1 3 3.28 2.8 90 1/4 Quick change shank
2 3.2 1/8 3.48 2.8 90
3 4 5/32 4.28 3.5 90-150
4 4.8 3/16 5.13 4.5 90-150
5 5 5.28 4.5 100-150
6 5.5 7/32 5.78 4.5 100-150
7 6 6.28 5.5 100-300 1/4 Quick change shank / 3 flats
8 6.4 1/4 6.71 5.5 100-300
9 7 7.33 6.5 100-300
10 8 5/16 8.33 7.5 100-300
11 3/8 10.01 9 150-460
12 10 10.33 9 150-460
13 7/16 11.76 11 150-460
14 12 12.35 9.96 150-460
15 1/2 13.34 11 150-460
16 14 14.35 12 150-460 3 flats
17 9/16 14.91 12 150-460
18 5/8 16.64 14 150-460
19 3/4 19.84 17 150-460
20 7/8 23.14 20 150-460
21 1 26.31 23 150-460
