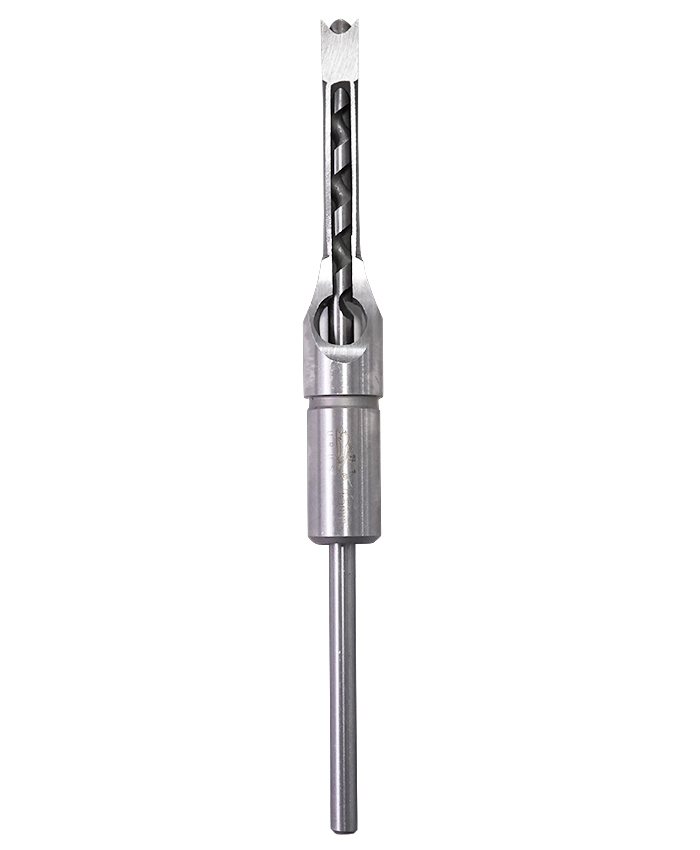

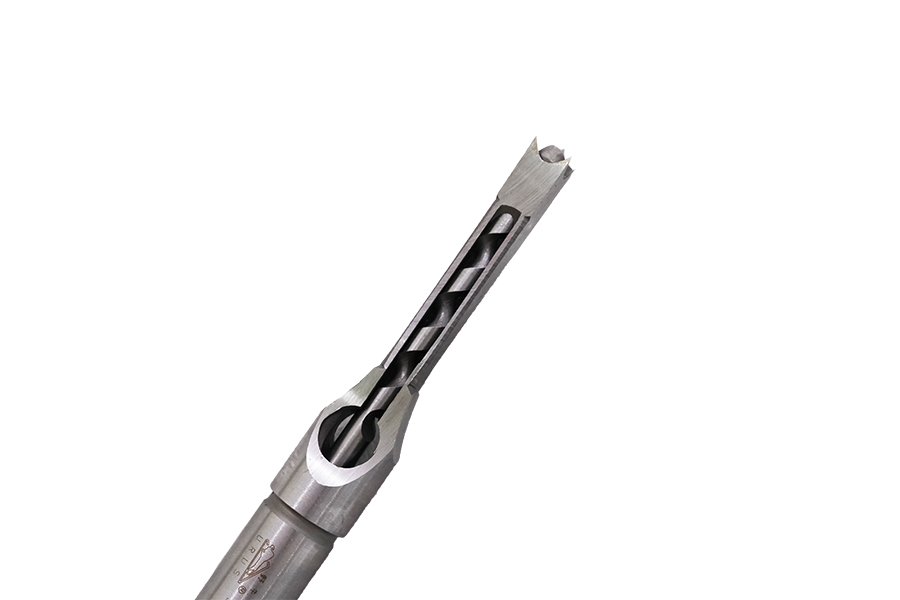

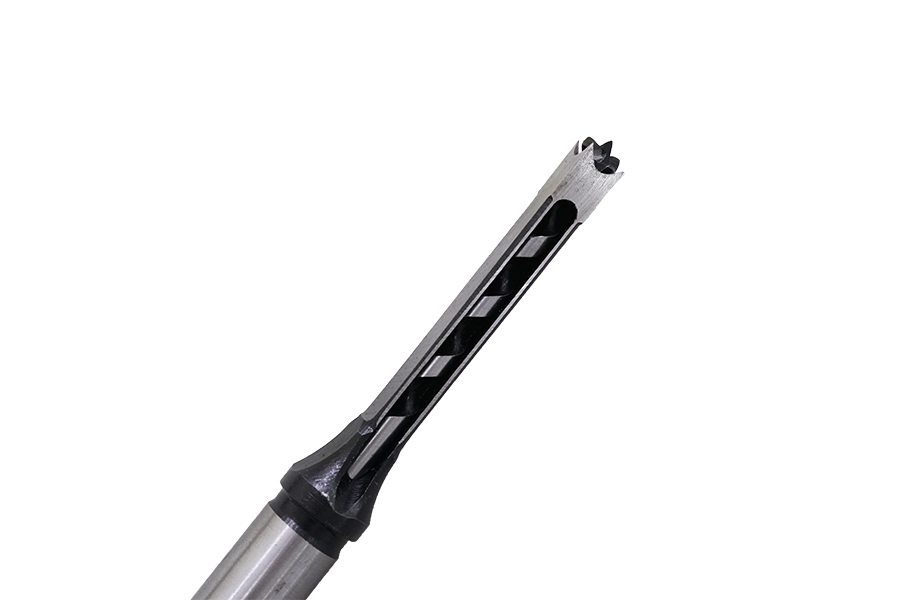

Hollow Mortising Chisel Bit I Style Blacken Grinding

Description:

※Either made from high quality carbon steel or equality better materials.

※The walls of the chisel point are all equal in thickness for superior long lasting performance.

※ All metric chisels and imperial sizes from 1/4" to 1-3/16" , and the shanks are 3/4" or 5/8".

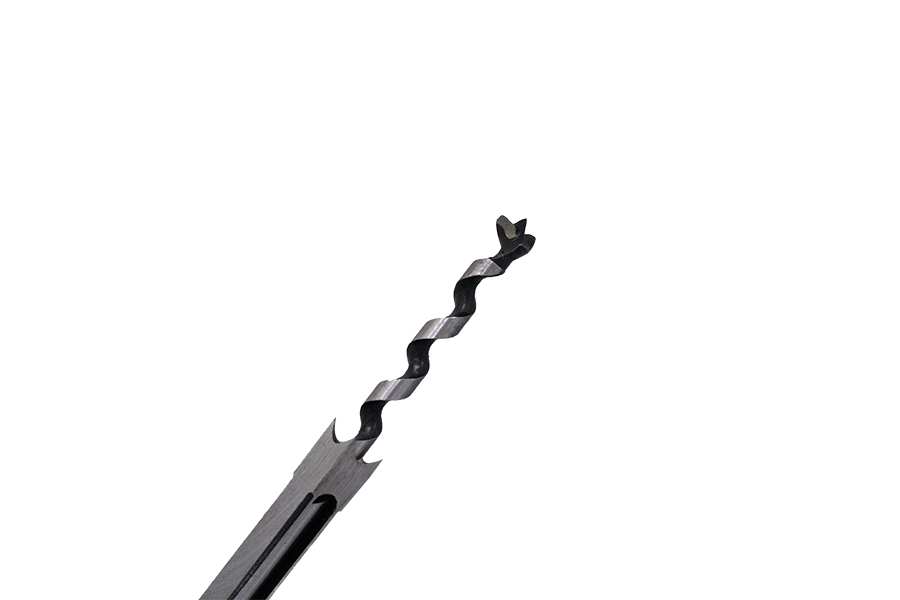

※Shank	※Chisel body & bit	※ Four teeth	※Bit point

Dimension marking:

Product Details

STYLE: BLACKEN GRINDING

Item No.	D	L	LI	3/4 d	5/8 d	3/4 d2	5/8 d2
U1103060	6	157	48	19	15.87	4.55	4.55
U1103063	6.35	157	48	19	15.87	4.55	4.55
U1103079	7.94	157	48	19	15.87	5.85	5.85
U1103095	9.5	187	76	19	15.87	6.85	6.85
U1103100	10	187	76	19	15.87	6.85	6.85
U1103110	11	187	76	19	15.87	8.05	8.05
U1103120	12	187	76	19	15.87	9.3	9.3
U1103127	12.7	187	76	19	15.87	9.85	9.85
U1103140	14	210	76	19	15.87	10.1	10.1
U1103150	15	218	92	19	15.87	11.8	10
U1103160	16	218	92	19	15.87	12	10
U1103180	18	225	92	19	15.87	12	10
U1103190	19	225	92	19	15.87	12	10
U1103200	20	225	92	19	15.87	12	10
U1103220	22	225	92	19	15.87	12	10
U1103250	25	225	92	19	15.87	12	10
U1103300	30	225	92	19	15.87	12	10

unit: mm

Zhejiang Urus Tools Co.,Ltd is famous China Hollow Mortising Chisel Bit I Style Blacken Grinding Suppliers and Custom Hollow Mortising Chisel Bit I Style Blacken Grinding factory since 1995. Accept OEM and ODM. Mainly exported to Europe, America, Japan and other countries. Our laboratory was officially certified by TÜV Rheinland as cooperative testing lab, and our company was awarded as national high-tech enterprise. Company has passed ISO9001:2015 quality management system, ISO14001:2015 environment management system and OHSAS 18001:2007 OH&S management system. Plant area over 65000 square meter, 100+ employee.
